SH7A Digital Thermal Imaging Multimeter

The SH7A Digital Thermal Imaging Multimeter combines high-accuracy electrical testing with thermal imaging in one versatile device. With 20,000-count accuracy, an integrated IR camera, auto-ranging, and 320 resolution, it is designed to support efficient electrical diagnostics and troubleshooting.

Whether used by professionals or DIYers, the SH7A provides a convenient way to inspect electrical systems while capturing detailed thermal images for analysis.

Built for Accurate Diagnostics
  • 20,000-Count High Accuracy

With 20,000 counts, the SH7A delivers high-accuracy voltage testing for precise electrical diagnostics.

  • 2-in-1 IR Camera & Lens

The built-in IR camera and lens provide thermal imaging and close-up inspection, making it suitable for a range of diagnostic applications.

  • Auto-Ranging Function

The auto-ranging function automatically selects the appropriate measurement range, helping simplify operation and reducing the need for manual range selection.

  • 320 Thermal Imaging Resolution

With 320 resolution, the SH7A captures clear and sharp thermal images to support detailed analysis and troubleshooting of electrical systems.

Specifications
Name:Thermal Imaging Camera Multimeter
Thermal Imaging Camera: 320 x 320 resolution
Sensor Type: Vanadium Oxide (VOx) Microbolometer
Response Band: 8-14pm
Noise Equivalent Temperature Difference (NETD): ≤60mK(@25℃,F#1.0)
Spatial resolution (IFOV): 8.89mrad
Frame rate: 25Hz
Imaging lens focal length: 1.35mm
Temperature measurement resolution: 0.1℃
Temperature range: -20℃~1300℃(-4°~2372°F)/0.1℃.
15 kinds of color palettes: white heat, black heat, fusi-on 1, rainbow, fus-ion 2, iron red 1, iron red 2, sepia, color 1, color 2, ice and fire, rain, green heat, red heat, dark blue
Screen Display resolution: 480*320
Image storage: 12900 pictures
Multimeter mode:
DC Voltage (V):
2.0000V/0.0001V/±(0.05%+3)
20.000V/0.001V/±(0.05%+3)
200.00V/0.01V/±(0.5%+3)
1000V/0.1V/±(0.5%+3)
DC Voltage (mV):
20.000mV/0.001mV/±(0.1%+3)
200.00mV/0.01mV/±(0.1%+3)
AC Voltage (V):
2.0000V/0.0001V/±(0.5%+3)
20.000V/0.001V/±(0.5%+3)
200.00V/0.01V/±(0.5%+3)
750V/0.1V/±(0.5%+3)

AC Voltage (mV):
20.000mV/0.001mV/±(0.5%+3)
200.00mV/0.01mV/±(0.5%+3)
Resistances:
200.00Ω/0.01Ω/±(0.5%+3)
2.0000kΩ/0.0001kΩ/±(0.2%+3)
20.000kΩ/0.001kΩ/±(0.2%+3)
200.00kΩ/0.01kΩ/±(0.2%+3)
2.0000MΩ/0.0001MΩ/±(1.0%+3)
20.000MΩ/0.001MΩ/±(1.0%+3)
200.00MΩ/0.01MΩ/±(5.0%+5)
Capacitors:
999.99nF/0.01nF/±(5.0%+5)
9.999uF/0.001μF/±(2.0%+5)
999.99uF/0.01μF/±(2.0%+5)
99.999mF/0.001mF/±(5.0%+10)
Flexible Current Clamp AC Current:
200.0A/0.1A
2000A/1A
Temperature:
(-20~1300)℃/1℃/±(2.0%+5)
(-4~2372)℉/1℉/±(2.0%+5)
Diodes: Yes
Continuity: Yes
Size: 169*81*26.8mm
Type:SH7A Multimeter / Flexible Coil / Macro Lens(Optional)

Note:

There might be a bit color distortions due to different computer resolutions.
There might be a slight errors due to different hand measurement.

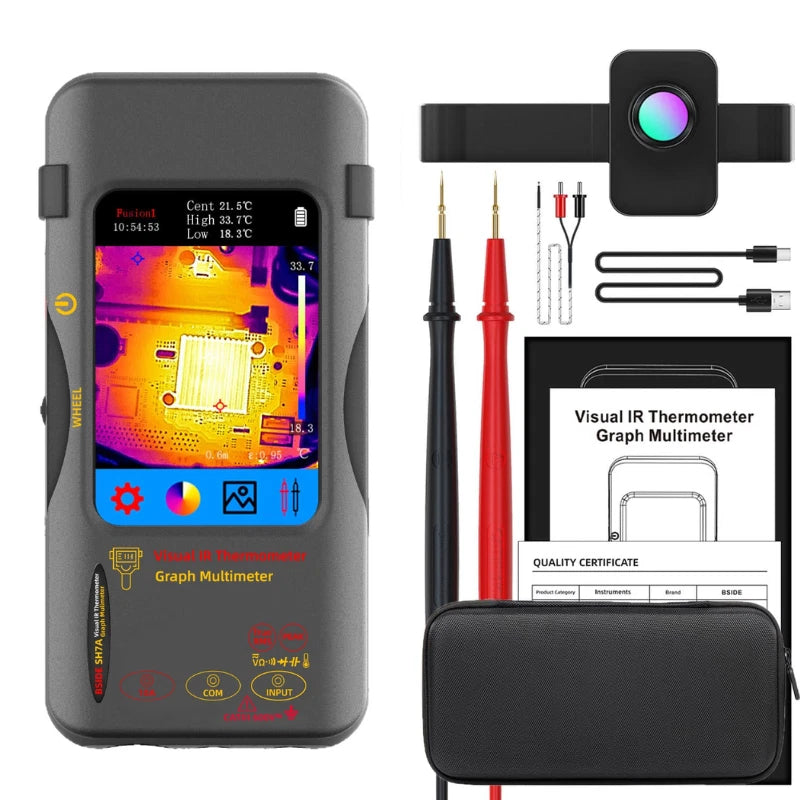

Package Includes
  • 1× Thermal imaging camera multimeter
  • 1× thermocouples
  • 1× Test Leads
  • 1× Storage bag
  • 1x Charging Cable
  • 1x Instruction manual
  • 1x Macro Lens
